Prime Liquid Handler

Purpose-built for today’s most demanding life science workflows, Prime delivers the precision and throughput labs expect from automated liquid handlers in a compact, approachable workstation. Whether deployed as a standalone liquid handler or as the starting point of a larger automation system, Prime empowers labs to automate with confidence today and expand seamlessly tomorrow.

→ Get A Quote

→ Download Brochure

Vertical  Orientation

Prime’s vertical design minimizes footprint while supporting a wide range of consumables and deck accessories.

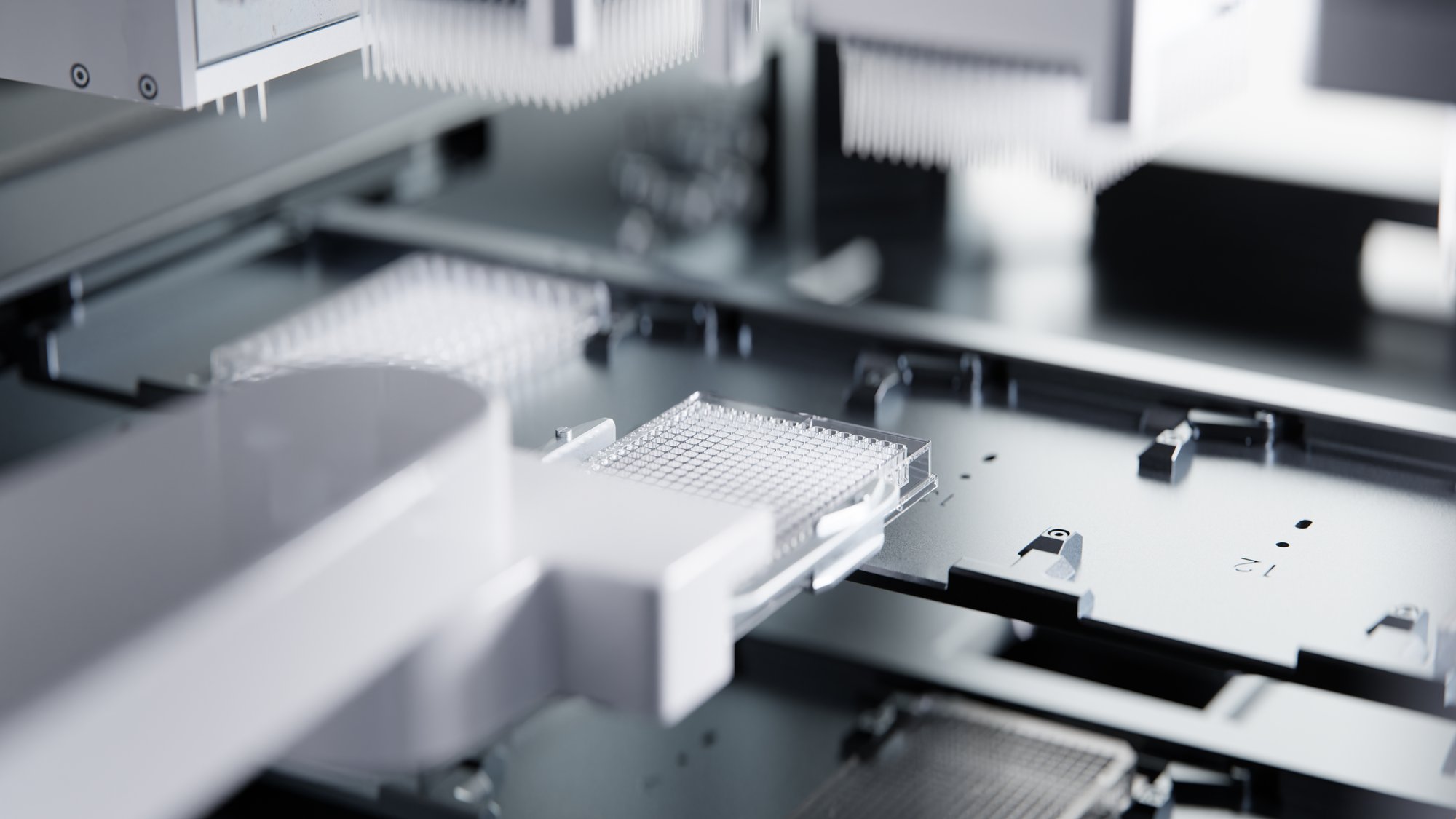

Collaborative Robot Sample Transport

A collaborative robotic arm enables seamless on-deck, off-deck and under-deck transport to boost throughput without added complexity.

Exchangeable Pipette Heads

Automatically swap 8, 96, and 384 channel pipetting heads on the fly to support multiple plate formats and applications with minimal downtime.

1536 Pipetting

Accurate 1536-well pipetting enabled by active plate positioning in all dynamic tray nests.

Dynamic and Fixed Trays

A mix of fixed and dynamic trays supports on-deck devices while enabling efficient plate movement.

Continuous Pipetting

Two pipetting decks with an integrated robot allow one deck to be loaded or unloaded while active pipetting continues on the second deck, reducing idle time and increasing throughput.

Ample Underdeck Consumable Storage

Under-deck carousel stores up to 580 microplates with barcode-enabled random and serial access.

Mobile, Scalable, and Upgradable

Easily reconfigure by docking on a new system or adding options like HEPA filtration, waste handling, and more accessories to match your workflow today and tomorrow.

Solution Software

Prime pairs high-performance liquid handling with intuitive software designed for life science workflows at any scale.From protocol development to execution and monitoring, Solution Software enables standalone liquid handling today, while seamlessly scaling into automated, multi-device systems tomorrow. Built for both scientists and automation engineers, Prime software simplifies complex workflows without sacrificing control, flexibility, or visibility.

→ Get a Quote

Prime-1

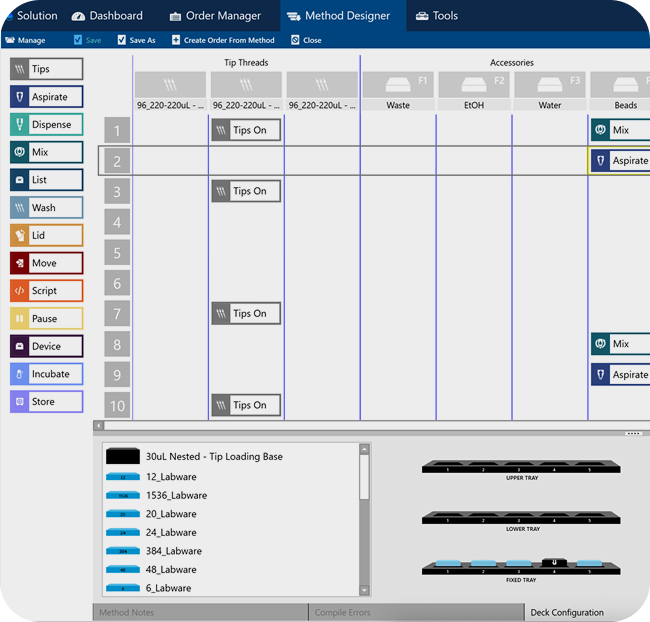

Liquid Handling
Method Designer

Prime Solution Software features a graphical, drag-and-drop interface that allows users to quickly build, edit, simulate, and execute automated liquid handling workflows with noscripting required.

Prime-2

Real-Time
Info Dashboard

Monitor workflow progress in real time with a comprehensive dashboard that tracks pipetting actions, robot movements, and system status, whether running a scheduled order or manual operation.

Prime-3

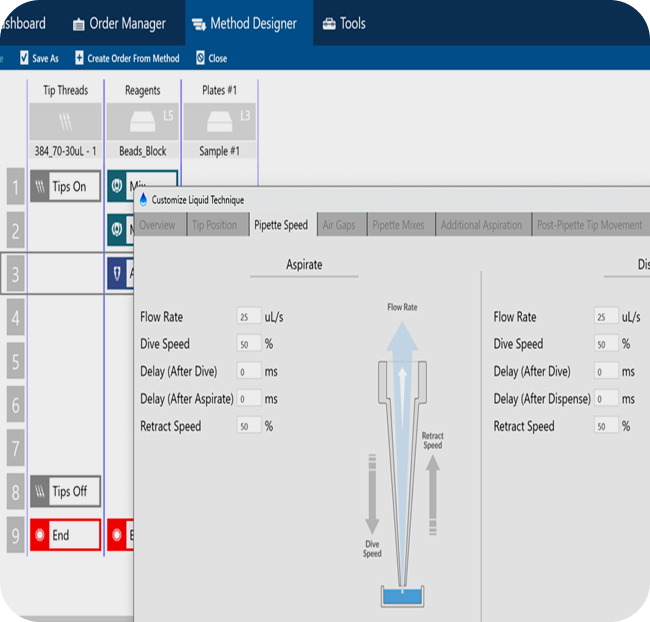

Precise Control,
Intelligent Recovery

Advanced scripting enables fine-tuned control over pipetting techniques and parameters, while built-in error recovery features automatically detect and respond to issues, minimizing downtime and protecting valuable samples.

Prime-4

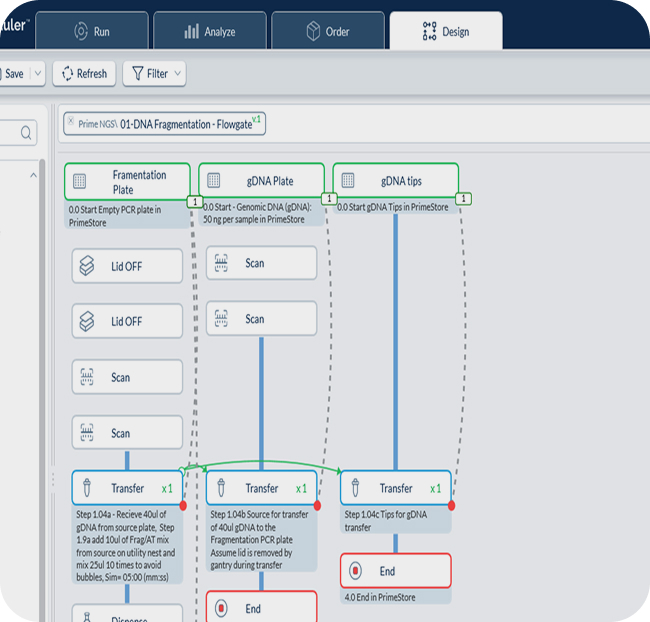

Integrated
Software Solutions

Prime Solution Software integrates seamlessly with Cellario, enabling multi-device workflows to be organized, scheduled, and controlled from a single interface, independent of vendor or assay format.

Pipetting Head Options:	iZ8 channel x 30 µL or 70 µL tips iZ8 channel x 220 µL tips iZ8 channel x 1000 µL tips 96 well x 220 µL tips 96 well x 1000 µL tips 384 well x 30 µL or 70 µL tips 1536 well pin tool
On-Deck SBS Labware Nest Positions:	15 (5 on each of three trays) x
Internal Panel Connectivity:	10 USB ports 6 pump connections 6 bath connections 2 leak detection connections
External Panel Connectivity:	6 electrical power outlets
Robotic Arm Reach:	1145 mm (45.1 in)
Robotic Arm Z-Axis Travel:	573 mm (22.6 in)
Labware Carousel Capacity:	30 stacker locations
Labware Carousel Capacity:	xInternal chute (4 stacker locations) External chute with bix
HEPA Air Filtration:	Available
Compressed Air:	90 psi minimum
Dimensions (H x W x L):	980 x 840 x 1300 mm (78 x 33.1 x 51.2 in) without bubble door 1980 x 840 x 1530 mm (78 x 33.1 x 60.2 in) with bubble door
Ergotron with PC:	Included
2D Barcode Scanning:	Included
Safety:	Integrated E-stop, light curtains, and optional bubble door
Dimensions (H x W x L):	1980 x 840 x 1300 mm (78 x 33.1 x 51.2 in) without bubble door 1980 x 840 x 1530 mm (78 x 33.1 x 60.2 in) with bubble door
Weight:	159 kg (350.5 lb)
Power:	120 VAC, 60 Hz, 15 A NEMA 5-15 IEC C13 connector provided or 240 VAC, 50 Hz, 8 A CEE7/7 IEC C13 connector provided
Uninterruptible Power Supply:	Included
Communications:	Ethernet CAT6
